It is millions of trillions of times brighter than sunlight and a whopping 1,000 trillionth of a second, appropriately called ‘Instantaneous Light’—the X-ray Free Electron Laser (XFEL) light that opens a new scientific paradigm. Combining it with AI, an international research team has succeeded in filming and restoring the 3-D structure of nanoparticles that share structural similarities with viruses. With the fear of a new pandemic growing around the world due to COVID-19, this discovery is attracting attention among academic circles for imaging the structure of the virus with both high accuracy and speed.

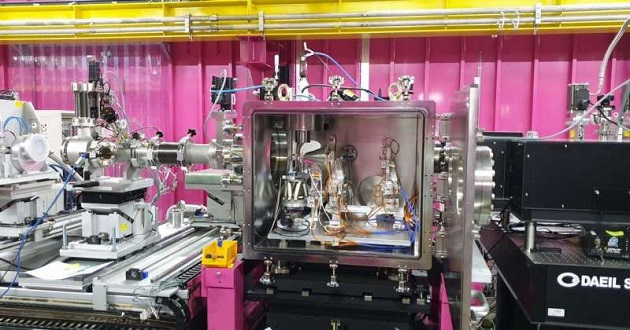

An international team of researchers from POSTECH, National University of Singapore (NUS), KAIST, GIST, and IBS has successfully analyzed the structural heterogeneities in 3-D structures of nanoparticles by irradiating thousands of nanoparticles per hour using the XFEL at Pohang Accelerator Laboratory (PAL) in Korea and restoring 3-D multi-models through machine learning. The research team led by Professor Changyong Song and Ph.D. candidate Do Hyung Cho of the Department of Physics at POSTECH has driven the international research collaboration to realize it.
Nanoparticles have a peculiar function that may not be available from native bulk materials, and one can control their physical and chemical properties by designing 3-D structures and compositions of constituting elements.
The commonality between nanoparticles and viruses is that they exist in the form of independent particles, rather than in crystal-regular, periodic arrangements, and, as such, their structures are not uniform at the nanometer level. To precisely understand their structures, it is necessary to statistically analyze the structure of individual particles using the whole ensemble distribution of structures from thousands to hundreds of thousands of specimens. However, electron microscopes often fall short of providing enough penetration to limit the size of the sample to be probed; conventional X-rays may damage the sample by X-ray radiation itself, making it difficult to obtain sufficient resolution.
The research team overcame the practical limitations of the conventional method by using the X-ray free-electron laser and the machine learning method to observe the statistical distribution of the 3-D structure of thousands of nanoparticles at the nanometer level. As a result, 3-D structures of nanoparticles having a size of 300 nm were obtained with a resolution better than 20 nm.
This achievement was particularly significant for restoring the 3-D structure of thousands of nanoparticles using machine learning. Since conventional single-particle imaging techniques often assume an identical 3-D structure of the specimens, it was difficult to restore the structure in actual experimental data where the sample structure is not homogeneous. However, with the introduction of the multi-model this time, the researchers succeeded in restoring the representative 3-D structures. This research has enabled the classification of nanoparticles into four major shapes, and confirmed that about 40% of them had similar structures.
In addition, through quantitative analysis of the restored 3-D structure, the international research collaboration team also uncovered the internal elastic strain distribution accompanied by the characteristic polyhedron structure of the nanoparticles and the inhomogeneous density distribution.
“These findings enable the observation of 3-D structure of noncrystalline viral specimens with inhomogeneously distributed internal molecules,” explained Professor Changyong Song of POSTECH. “Adding the 3-D image restoration algorithm to this through machine learning shows promise to be applicable to studies of macromolecule structures or viruses in living organisms.”
