ChipVORX technology for Chip Embedded Instruments extended on Intel MAX 10 FPGAs

GOEPEL electronic extends the availability of ChipVORX   model libraries for FPGA of the Intel  MAX  10 to support embedded test and embedded programming.

ChipVORX   is a technology for universal control of Chip Embedded Instruments via JTAG port. The special ChipVORX   models are modular IP (Intellectual Properties), which contain all relevant access information of the target FPGA and are part of a comprehensive IP library. As part of a project development, users can first select the target FPGA and then enable the desired test or programming function. These include Flash programming (for parallel or serial NOR Flash, including FPGA Boot Flash), RAM Access Test, universal frequency measurement and Bit Error Rate Test (BERT). The ChipVORX   technology allows the user to implement the Embedded System Access (ESA).

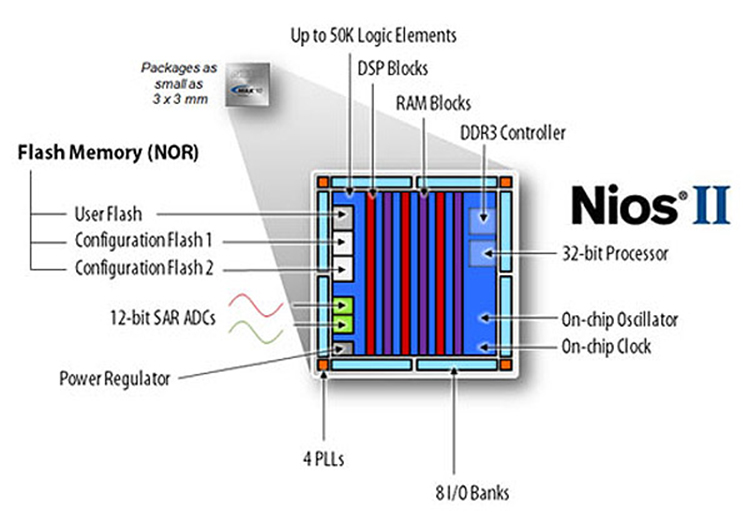

Architecture of the MAX 10 FPGAs (Source: Intel)

The Intel  MAX  10 FPGAs are based on a 55 nm Embedded NOR Flash technology. The FPGAs are delivered in different packages with up to 672 pins. Adaption is possible via the JTAG interface.

By design integrated test electronics no needles or probes are necessary for contacting the UUT. In addition, a mix with non-intrusive methods such as Boundary Scan or Processor Emulation is easily possible on a platform. Application settings for the contents (including the connection between IP and pin) are performed automatically and without FPGA synthesis. Parameters for functions like Bit Error Rate Test and frequency measurement are interactively set via control panels and become operative immediately. The ChipVORX   model libraries enable fast system adaption with unified equipment for all testing and programming tasks. Thereby, overall process efficiency is improved, investments are protected and costs are smaller related to external testers.
