Here is article five in ELE Times’ Company Watch series.

In today’s scenario when Time to Market is at the paramount in electronics and electrical industry, so the rapid prototyping setup for modern engineering lab to design, develop, fabricate, prototype, and test end-to-end chain for Education, Research and Industry is a very necessary tool.  Such kind of a setup allows the user to shrink the complete design cycle and make the proof of concept (POC) available at the shortest time. Setup should be versatile to simulate and emulate the device under test. Setup should be capable of having the necessary test and measuring instrument to match the user requirements.

Scientech Technologies Pvt. Ltd.  INDIA is an ISO 9001:2015 certified company that has a strong presence in educational, environmental and industrial sectors provides a comprehensive Rapid Prototyping solution for your Design, Development & Testing setup.

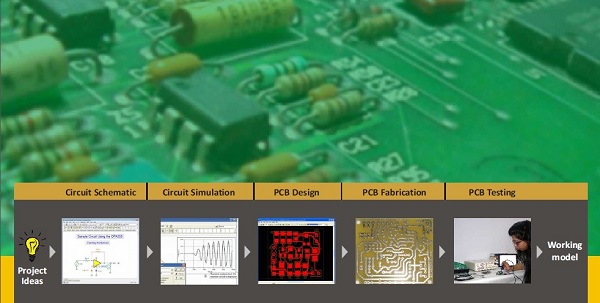

Circuit Schematic, Circuit Simulation & PCB Design

TINA Design Suite is a powerful yet affordable circuit simulation and PCB design software package for analyzing, designing, and real-time testing of analog, digital, Verilog-AMS, VHDL, MCU, and mixed electronic circuits, their PCB layouts and Mechatronics Systems. You can also analyze SMPS, RF, communication, and optoelectronic circuits; generate and debug MCU code using the integrated flowchart tool; and test microcontroller applications in a mixed circuit environment.

PCB Fabrication:

Everprecision equipment offers cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drilling/milling/engraving/routing, mil track, and trace. Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production. 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can control spindle speed by software and apply to 4 mil track and trace. PCAM Software: PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like P-Cad/ Allegro / protel /ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc.

PCB Testing

Scientech Multi-Instrument Solution is a compact, portable and ultimate solution for engineers in design, testing, application, and in field services. It is space saving, allows faster testing time, and faster troubleshooting. Scientech Multi-Instrument Solution has different TMI capabilities like Digital Storage Oscilloscope, Mixed Signal Oscilloscope, Logic Analyzer, Synthesized Function Generator, Pattern / Word Generator, Programmable Clock, Programmable Power Supply, Data acquisition, Voltmeter, Current meter etc. It has features of analysis on multiple large and simultaneous windows, storage of waveforms on PC, sharing waveform data, a virtual component library for real-world hardware interface and event scheduler to automate testing. Now Industries and Institutes can simply have one Scientech Multi-Instrument and one laptop/tablet on each table, replacing multiple TMI boxes.

For more information, visit scientechworld.com.
