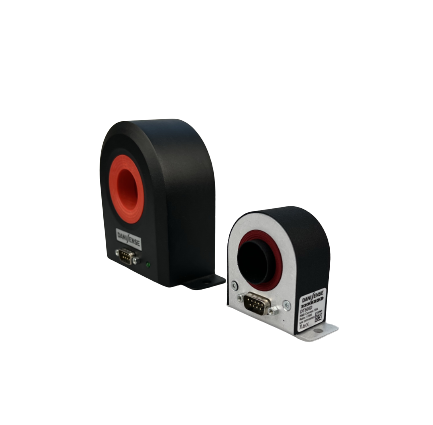

Danisense the leader in high-accuracy current sense transducers for demanding applications, is launching its new DT series of ultra-stable, high precision (ppm class) fluxgate technology current transducers for isolated DC and AC current measurement up to 200Arms at PCIM 2022. Benefiting from a considerably reduced size with 60% less volume compared with the previous product generation, the devices feature a large frequency bandwidth of up to 2MHz and a primary current ranging from 50A up to 200A.
DT series current transducers use Danisense’s Fluxgate, closed-loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability. Excellent linearity (better than 2 ppm), an industry-standard DSUB 9-pin connection, a green diode for normal operation indication and a large aperture with a diameter of 20.7mm for cables and bus bars are further features of the components.
DT series current transducers are Ideal for applications such as high precision power supplies for laboratories, accelerators and medical equipment where size is a key factor as designs for such power supplies are getting smaller and smaller to increase power density and reduce costs. Size is also very important for the embedded power measurement application for cars were placing the transducers in a compact motor and inverters environment is always a challenge. The large frequency bandwidth of the DT series is another advantage for such power measurement applications.
