    Upgrading Die Attach Machine Capability for Micro Electromechanical Systems Package

    ABSTRACT

    This paper discussed the study and challenges in the Die Attach process, brought by product structure criticalities and the requirement of MEMS product. Upgrading the current machine mechanical sand software to improve the machine capabilities and overcome the product structure criticalities such; us 30mm accuracy of Die Placement, can process Wafer with double Die Orientation 0° and 180° bonding and can detect for wrong die Orientation, and lastly can process thin substrate 130mm. After the machine upgrades, a Statistical validation using Two Proportion tests was used to help validate the machine performance effectively. The new upgraded machine has the same capability and performance of the new die attach machine model, therefore the upgrade and enhance the old model Die Attach machine is effective and successful.

    Michael Capili Sr. Process Engineer
    Michael Capili Sr. Process Engineer

    INTRODUCTION

    MEMS stands for Micro Electromechanical Systems, which is a technology that in its most general form can be defined as miniaturized mechanical and electro-mechanical devices and structures that are made using the techniques of microfabrication. MEMS, as shown in Figs 1 and 2, are ultra-compact systems composed of micro-mechanical components such as sensors, actuators, and electronic circuits on a silicon wafer using the microfabrication technology of the manufacturing technology. Typically, the architecture of a MEMS package is composed of 2 kinds of silicon die: (1) MEMS die which is fabricated with the microscopic moving parts, and (2) the ASIC die that contains the functional circuit for the MEMS. The critical physical dimensions of MEMS devices can vary from well below one micron on the lower end of the dimensional spectrum, all the way to several millimeters. Likewise, the types of MEMS devices can vary from relatively simple structures having no moving elements, to extremely complex electromechanical systems with multiple moving elements under the control of integrated microelectronics. Due to the complexity of the package need to upgrade the current Die attach machine to meet the product requirement.

    Fig. 1. Cross-sectional view of a MEMS semiconductor package
    Fig. 1. Cross-sectional view of a MEMS semiconductor package

    EXPERIMENTAL DETAILS

    Due to product structure criticalities most of MEMS products, are processed using the latest Die Attach machine model, with the capability of 30mm accuracy of Die Placement, can process Wafer with double Die Orientation 0° and 180° bonding and can detect for a wrong die Orientation and lastly can process thin substrate 130mm.

    MEMS Die placement requirement.

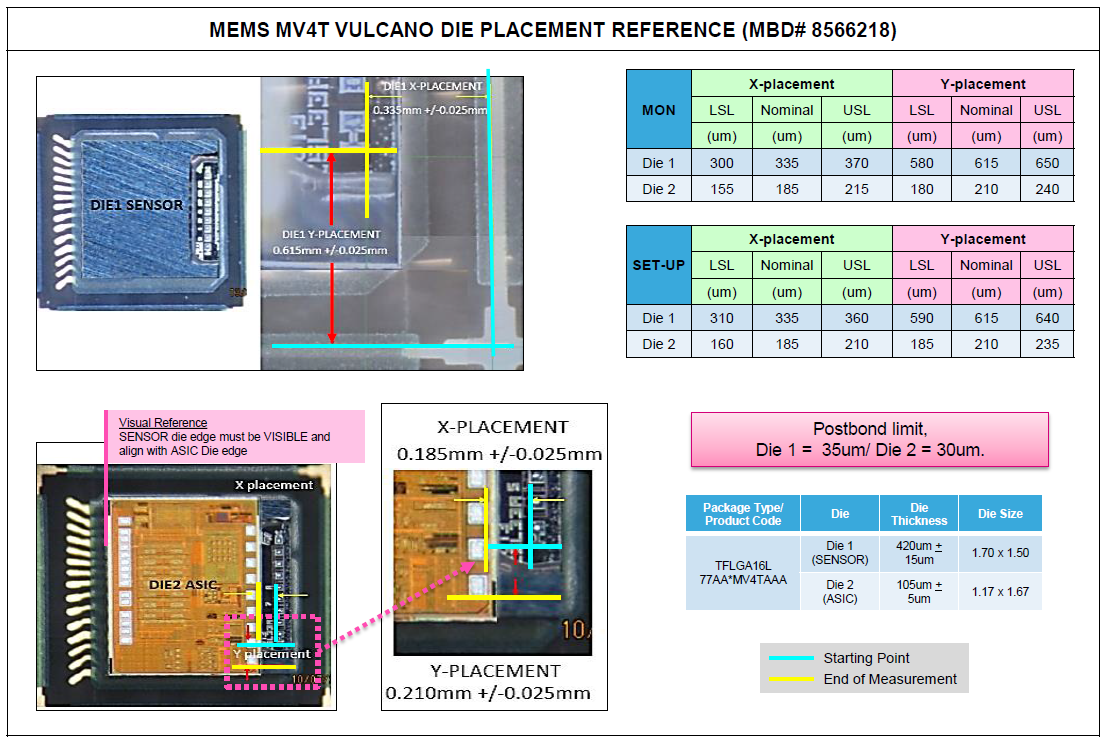

    Fig. 2. MEMS Die placement requirement.
    Fig. 3. MEMS wafer with dual orientation
    Fig. 3. MEMS wafer with dual orientation

    The old Die Attach machine model such as ASM383 die attach machine is not capable to process with Die Orientation 0°and 180° bonding, that can lead to wrong die orientation issue. Machine also need improve the detection for wrong die Orientation. Also, the machine work holder needs to enhance to process thin substrate (130mm) to prevent the Damage Substrate problem.

    Fig. 4. Die attach machine capability assessment.
    Fig. 4. Die attach machine capability assessment.

    In order to meet the MEMS product requirement in Die Attach, need to upgrade and enhance the old model Die Attach machine capability, below the machine activities to overcome the criticalities of MEMS refer to Table 1.

    Table 1. Activities to overcome the criticalities of MEMS.

    Criticality Potential defect Action
    Wafer die orientation  0°and 180° bonding Wrong Die Orientation

    Shifted Map



    ·     Performed machine bond head overhaul by replacing major parts & perform calibration upon re installation.

    o    Installation of new BHT bond arm.

    o     Replacement of 24-00520 BH Y LMGUIDE  2SRS12MSSC1+220LP

    o     Replacement of 24-00519 BHZ LMGUIDE 2SRS9MUUC1E+95LPM11

    o    Replacement 12-E60686 AD838 BHT M&ENC& BF flex cable

    o    Replacement of 02-75527 BA BF 3W-VCM coil with thermal

    o    Software upgrade – CSW V 9.28.53 / VSW 3.56.47

    Thin substrate 130mm Damaged/

    crumpled leadframe

    Upgrade the workholder – Installed roller at

    Workholder to compensate the substrate warpage.

    Die placement

    < 30 microns



    Misplaced die ·     Bond head & optics calibration.

    o    Bond arm planarity

    o    3 pt. alignment

    o    Optics calibration

    o    Bond optics glass calibration

    o    Bond head theta calibration

    o    LVDT calibration

    ·     Performed device set up

    o    Teach LF indexing

    o    Teach bond, Post bond & wafer, wafer alignment pt. PR

    o    Learn pick & bond level

    After the mechanical and software upgrade a machine test was performed to check the machine accuracy in terms of die placement. A different test scenario was done and measure the actual die placement X and Y axis and the die theta or orientation.

    Fig. 5. Die placement measurement validation result.
    Fig. 5. Die placement measurement validation result.

    RESULTS AND DISCUSSIONS

    After the completion of machine upgrade and enhancement, a Statistical Validation using 2 Proportion tests, was performed to check the effectivity of the actions. First Statistical validation does the upgraded or new version of ASM838 is capable to bond the wafer with Die Orientation 0°and 180° bonding. The statistical result is shown at a 95% confidence level. there is a Significant difference the New upgraded ASM838 is capable to process wafers with Die Orientation 0°and 180° bonding.

    Fig. 6. Die Orientation 0°and 180° bonding statistical validation result
    Fig. 6. Die Orientation 0°and 180° bonding statistical validation result

    The second Statistical validation does the upgraded or new version of ASM838 is capable to detect the Wrong Die Orientation at Post Bond Inspection. The statistical result is shown at a 95% confidence level, there is a Significant difference the New upgraded ASM838 is capable to detect Wrong Die Orientation during post bond inspection.

    Fig. 7. Wrong die orientation statistical validation result
    Fig. 7. Wrong die orientation statistical validation result

    Lastly, the third Statistical Validation, does the installation of an additional roller in the work holder will reduce the occurrence of Damaged substrate. The statistical result is shown at a 95% confidence level, there is NO Significant difference the New installed roller in ASM838 can reduce occurrences of Damaged Substrate.

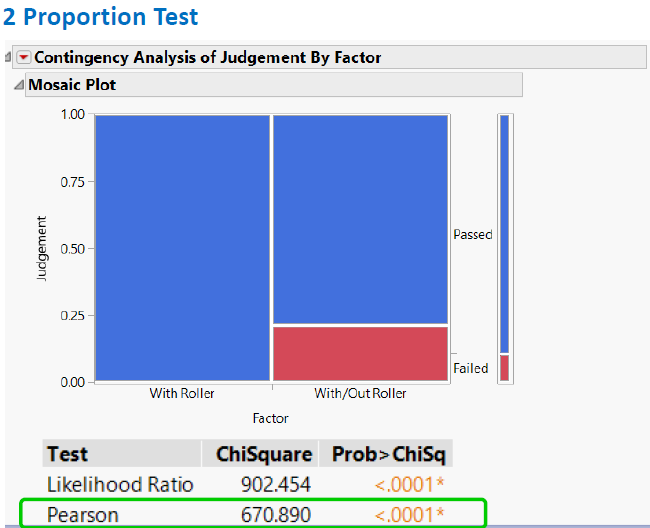

    Fig. 8. Damaged substrate statistical validation result
    Fig. 8. Damaged substrate statistical validation result

    CONCLUSION

    The overall practical conclusion is the new upgraded and enhancement on ASM838 die attach machine is capable to process MEMS package, can overcome the product structure criticalities such us 30um accuracy for Die Placement, can process Wafer with double Die Orientation 0°and 180° bonding and can detect for wrong die Orientation, and lastly can process Thin Substrate130um. The new upgraded machine has the same capability, and performance of the new die attach machine model, therefore the upgrade and enhance the old model Die Attach machine is effective and successful.
