New Variants for the DART-6UL SoM by Variscite

With Improved Certified Wi-Fi/BT Module with 802.11 ac/a/b/g/n Support

In a matter of only two months, Variscite has announced the launch of an additional enhancement for the DART-6UL System on Module(SoM) product line based on the NXP Cortex-A7 i.MX6 UltraLite family.

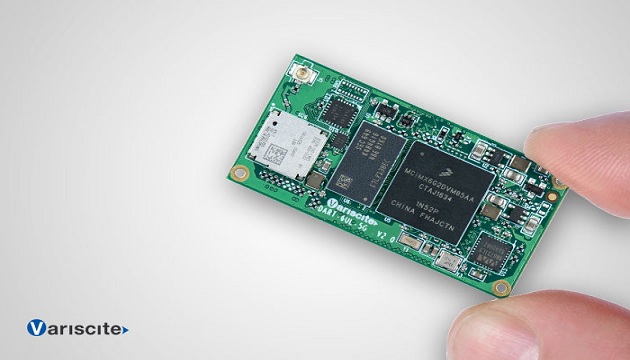

The newly-introduced DART-6UL-5G variants are enhanced with certified Wi-Fi/BT module with 802.11 ac/a/b/g/n and dual band 2.4/5 GHz support. Those variants provide improved performance and effective bit-rate over its Wi-Fi, an ideal solution for products requiring high data transfer rates over the wireless network.

The DART-6UL-5G variants will run alongside two popular early variants: Initial i.MX 6UL variants, recently enhanced with 696MHz processor speed grade, and low-power i.MX 6ULL variants. All variants can be satisfied within a very attractive price range – starting from only 24 USD.

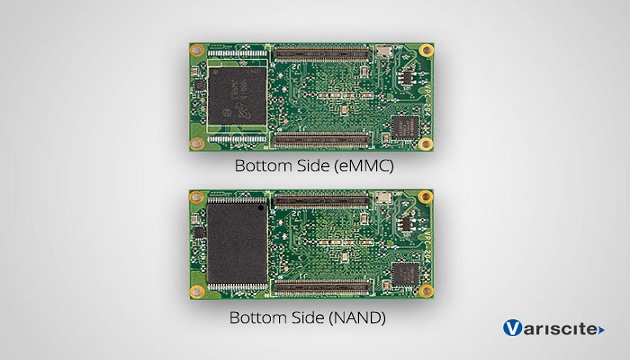

DART-6UL emmcThe DART-6UL-5G is pin-to-pin compatible with other DART-6UL variants. Sharing the exact same features-set and variety of interfaces, all products are compact (only 25 x 50 mm), have optimized cost and power, boast a full -40 to 85 temperature range and carry a 15-year longevity commitment. Leveraging this rich feature set, the platform is commonly used in fast emerging applications, such as the Internet-of-Things, industrial-grade embedded applications and portable/battery operated embedded systems.

Variscite’s production-ready software suit for the DART-6UL, covering Linux Yocto, Linux Debian and Android, delivers an all-inclusive solution, significantly easing development efforts and shortening time-to-market.

DART-6UL-5G key features include:

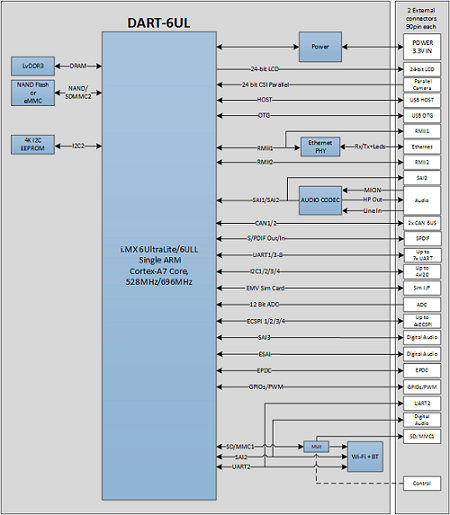

  • Small size: 25 x 50 x 4 mmDART6UL_BD
  • NXP i.MX 6UltraLite and 6ULL 528 MHz / 696 MHz ARM Cortex-A7 with optional security features
  • Up to 512 MB DDR3L and 512 MB NAND / 32 GB eMMC
  • Certified Wi-Fi/Bluetooth 802.11 ac/a/b/g/n Dual Band 2.4/5 GHz
  • Dual 10/100Mbps Ethernet
  • 2D Pixel acceleration engine
  • Display: 24-bit parallel RGB up to WXGA
  • Touchscreen controller
  • Dual USB 2.0 OTG (Host/Device)
  • Audio In/Out
  • Dual CAN, UART, I2C, SPI, PWM, ADC
  • Parallel camera input
  • Industrial temperature grade
  • OS: Linux Yocto, Linux Debian, Android

Availability and pricing:

The DART-6UL SoM and associated development kits are available now for orders in production quantities, starting at only 24 USD per unit.
