    New NTC Thermistor with Flexible Leads and Faster Thermal Response

    Overview

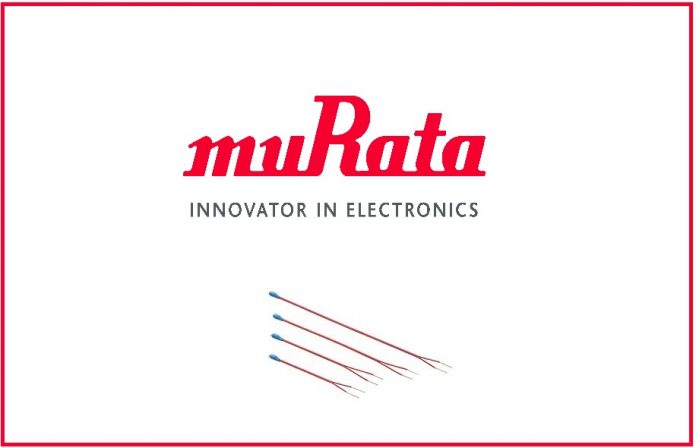

    Murata has improved its NXF series of thermal string type NTC thermistors with flexible leads, and commercialized it as a new type (NXF*15******E*****).

    This product is intended for use in applications such as automotive onboard equipment and consumer equipment. Production is scheduled to commence in September 2017.

    Background

    The NXF series of thermal string type NTC thermistors with flexible leads is a series of electronic components for detecting and measuring temperature. These sensors feature one of the industry’s smallest sensor heads, realizing compact size and fast thermal response.
    The new type (NXF*15******E*****) thermistor has 25% faster thermal response (compared to the hot constant of the previous model), which has been realized by selecting an appropriate wire material and internal construction. It is thus optimum for detecting the temperature at a point separate from the PC board, and also as a temperature sensor for assemblies.

    Electrical characteristics

    Part Number Resistance
    (25℃)
    B-Constant
    (25/50℃)
    Operating Current for Sensor
    (25℃)
    Thermal Dissipation Constant
    (25℃)
    Thermal Time Constant
    (25℃)
    Limited
    Applications
    NXFT15XV302FEAB*** 3kΩ 3936K 0.141mA 0.6mW/℃ 3s Consumer
    NXFT15XH103FEAB*** 10kΩ 3380K 0.077mA 0.6mW/℃ 3s Consumer
    NXFT15XV103FEAB*** 10kΩ 3936K 0.077mA 0.6mW/℃ 3s Consumer
    NXFT15WF104FEAB*** 100kΩ 4250K 0.024mA 0.6mW/℃ 3s Consumer
    NXFS15XV302FEAB*** 3kΩ 3936K 0.141mA 0.6mW/℃ 3s Automotive
    NXFS15XH103FEAB*** 10kΩ 3380K 0.077mA 0.6mW/℃ 3s Automotive
    NXFS15XV103FEAB*** 10kΩ 3936K 0.077mA 0.6mW/℃ 3s Automotive
    NXFS15WF104FEAB*** 100kΩ  4250K  0.024mA 0.6mW/℃  3s  Automotive

    Operating Temperature Range:-40゚C to +125゚

    Thermal response characteristics

    External size

    Width (sensor head)      : 1.2 ± 0.4 mm
    Length                          : 25, 30, 40, 50 mm (4 types)

    Site URL for the product Series
    NXF Series

    For more information, visit www.murata.co
