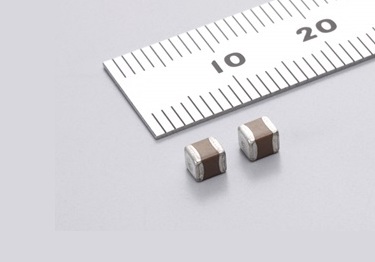

    1210 size/100V MLCC with capacitance of 10μF from Murata

    Murata Manufacturing  has introduced a new monolithic ceramic capacitor, the first of its kind in the world at 1210 size (3.2 x 2.5mm) with a guaranteed operating temperature upper limit of 125°C, rated voltage of 100V, and a capacitance of 10μF. The maximum capacitance of 4.7μF of conventional monolithic ceramic capacitors has been extended to 10μF, a world-first for Murata Manufacturing Co., Ltd.

    Background

    With more advanced and multiple functions being incorporated into electronic equipment, the operating temperature have become higher, and the need for a higher guaranteed operating temperature and larger capacitance in capacitors has grown. High-reliability monolithic ceramic capacitors are often used in the power supply circuits of network equipment and base stations, and the required capacitance has to date been ensured by using two or more 2.2μF and 4.7μF capacitors. The 10μF capacitor that we have currently introduced to the market allows the number of required capacitors to be reduced, and helps in making equipment more compact and more reliable. Moreover, the power supply circuits of network equipment and base stations are often used on 48V lines, prompting calls for capacitors with a rated voltage of 100V.
    In response to these needs, Murata Manufacturing Co., Ltd. has designed this new monolithic ceramic capacitor, the first of its kind in the world at 1210 size with a guaranteed operating temperature upper limit of 125°C, rated voltage of 100V, and capacitance of 10μF.

    Applications

    48V power lines for network equipment, base stations, etc.

    Part number

    1210 size, X7S characteristics, 10μF, K tolerance, (±10%), rated voltage 100V:
    GRM32EC72A106KE05

    Electric characteristics

    Temperature characteristics: X7S
    Rated voltage: 100Vdc
    Capacitance range: 10μF
    Operating temperature range: -55°C to +125°C

    External size

    1210 size:  L=3.2±0.3, W=2.5±0.2, T=2.5±0.2 (mm)

    mu







    For more information visit: www.murata.com
