All new SiC Schottky Diodes offer improved efficiency, reliability and thermal management

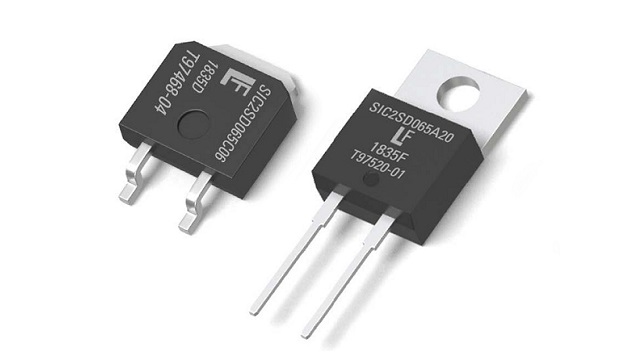

Littelfuse, Inc. introduced two second-generation series of 650V, AEC-Q101-qualified silicon carbide (SiC) Schottky Diodes. The LSIC2SD065CxxA and LSIC2SD065AxxA Series SiC Schottky Diodes are available with a choice of current ratings (6A, 8A, 10A, 16A or 20A). They offer power electronics system designers a variety of performance advantages, including negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175°C, so they are ideal for applications that require enhanced efficiency, reliability, and thermal management.

650V Series SiC Shottky Diodes

When compared to standard silicon PN-junction diodes, the 650V Series SiC Schottky Diodes support dramatic reductions in switching losses and substantial increases in the efficiency and robustness of a power electronics system. Because they dissipate less energy and can operate at higher junction temperatures than Si-based solutions, they allow for smaller heat sinks and a smaller system footprint. This provides end-users with all the advantages of more compact, energy-efficient systems and the potential for a lower total cost of ownership.

Typical applications for 650V Series SiC Schottky Diodes include:

  • power factor correction (PFC)
  • buck/boost stages in DC-DC converters
  • free-wheeling diodes in inverter stages
  • high-frequency output rectification
  • electric vehicle (EV) applications

“These new series are our first 650V SiC Schottky Diode offerings; all our previous releases were 1200V-rated devices, so we can now address a wider range of applications and further complement the Littelfuse SiC MOSFET portfolio,” said Christophe Warin, Silicon Carbide Product Marketing Manager, Semiconductor Business Unit at Littelfuse. “Their AEC-Q101 qualification puts these diodes in a higher class than similar devices in terms of quality and reliability.”

The 650V Series SiC Schottky Diodes offer these key benefits:

  • AEC-Q101-qualified diodes exhibit exceptional performance in demanding applications.
  • Far lower switching losses than silicon bipolar diodes and fast, temperature-independent switching behavior make these devices suitable for high-frequency power switching.
  • The positive temperature coefficient enables safe operation and ease of paralleling.
  • The 175°C maximum operating junction temperature provides a larger design margin and relaxed thermal management requirements.

 For more information, visit: Littelfuse.com
