Vicor Releases First 20 Amp 24V Cool-Power ZVS Buck

161

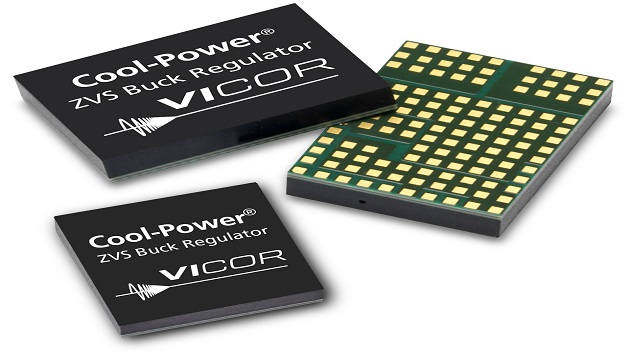

The Cool-Power ZVS Buck, PI3325-00-LGIZ, represents the highest current output ZVS buck to date for 24V/28V applications, providing a regulated 5V output at up to 20A. Packaged within a 10 x 14 x 2.5mm LGA SiP package, the PI3325-00-LGIZ addresses the continued need for high power density across a growing spectrum of applications. It also offers pin-for-pin compatibility to a 48V input version ZVS buck, the PI3525-00-LGIZ, enabling designs to be quickly ported from 24VIN capability to 48 VIN.

The PI3325-00-LGIZ requires only an output inductor and minimal passives for a complete, cost-effective, compact design that consumes less than 740mm2 of PCB real estate.  Higher current is also achievable by parallel operation of the regulator. The PI3325-00-LGIZ represents one regulator within a new portfolio of higher current 24V ZVS bucks already or soon to be released.

Cool-Power ZVS 20A Buck Regulator Portfolio

Part Number Package Input Voltage Range Nominal Output Voltage Current
PI3325-00-LGIZ 10 x 14mm 14 – 42V 5.0V 20A
PI3523-00-LGIZ 10 x 14mm 30 – 60V 3.3V 22A
PI3525-00-LGIZ 10 x 14mm 30 – 60V 5.0V 20A
PI3526-00-LGIZ 10 x 14mm 30 – 60V 12V 18A

Vicor’s Cool-Power ZVS regulators deliver more power at higher temperatures than competitive devices, without sacrificing power density or efficiency. Key attributes to the Cool-Power ZVS regulators’ high performance include zero-voltage switching topology, high silicon integration, and high density LGA SiP packaging. These high performance regulators are also simple to use ensuring designs that achieve first pass design success.

For more indormation, visit vicor.com.
