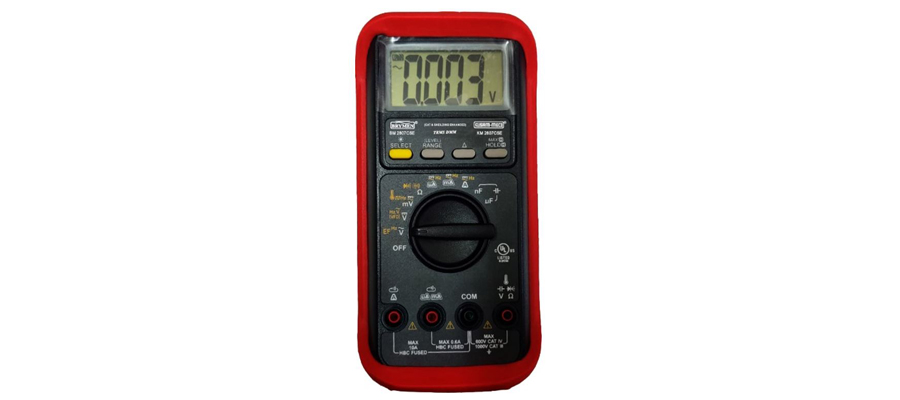

KUSAM –MECO has recently added a new ‘UL’ listed Multimeter Model KM 2807CSE. It has 3⅚ digits 6000 count LCD display. The update rate is 5 per second. It is TRMS Sensing. The safety category is CAT III 1000V and CAT IV 600V.
The Transient protection is 8KV. It meets EMC standard EN 61326 -1: 2013. The overload protection in mV, ohms and other ranges is 1000V DC/AC rms. The special features are VFD-AC Voltage, VFD –Hz, Hi/Lo EF Detection (NCV & Single Pole), Display Hold, W/Hold – alert warning, MAX Hold, Beep list Diode Test, W/Beep Pass Indication, Beep list continuity, Relative Zero mode, Back Lighted LCD display, Beep Jack. Audible & visible input warning.
It measures AC Voltage 0.01mV ~ 1000V, VFD-ACV (with Low Pass filter) 10-400Hz, DC Voltage 0.01mV to 1000V Resistance 0.1 Ohm to 60.00 Megaohm, Capacitance from 01nF to 2000 µF, Diode Test, DC Current from 0.1µA to 10.00A, AC current from 0.1µA to 10.00A, Logic Frequency 5.00Hz -300.0KHz, Temperature -40 to 400°C, Line Frequency 10Hz -50KHz, Non – Contact EF 15V – 1000V. The instrument is powered by 2×1.5V AAA size battery. Auto power off function. The instrument weight is 430gm. It is supplied with Operational Manual, Batteries, Test Leads, Thermocouple, Carrying case.
