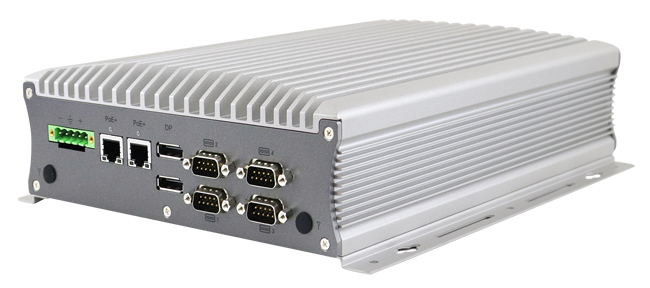

IBASE Technology Inc. has introduced its latest innovation in the realm of computing solutions – the AMI240 fanless system. This cutting-edge system, powered by the IBASE MBE240AF motherboard, promises unparalleled performance and connectivity options, catering to diverse applications across various industries.
Designed to accommodate 14th and 13th Gen Intel Core processors, including the Intel® i9-14900T processor with 24 cores and 36M cache, the AMI240 system offers exceptional processing power while maintaining energy efficiency. With a 35W TDP, it ensures optimal performance for demanding tasks, making it suitable for a wide range of applications.
One of the standout features of the AMI240 system is its compatibility with Sierra 5G modules, providing high-speed connectivity for advanced networking needs. Additionally, the system boasts a compact and space-efficient design, measuring just 210mm(W) x 285mm(D) x 77mm(H), making it suitable for installations where space is limited.
The system’s robust construction allows it to operate reliably in temperatures ranging from -20°C to 70°C, making it ideal for environments with extreme thermal conditions. This feature ensures that the system maintains its performance and functionality even in challenging operating environments.
Key features of the AMI240 fanless system include:
- Fanless design featuring the IBASE MBE240AF motherboard
- Support for 14th and 13th Gen Intel Core processors (i9/i7/i5/i3) with a 35W TDP
- Dual SIM slots for WWAN redundancy (5G/4G/LTE)
- Four RJ45 Ethernet ports (dual 2.5GbE + dual PoE+ supporting 802.3at)
- Three M.2 slots (B-Key/E-Key/M-Key), iAMT (16.1), TPM (2.0)
- Single 24V DC input with voltage protection (over/under/reverse)
- Wide operating temperature range (-20°C to 70°C)
Furthermore, the AMI240 system offers comprehensive connectivity options, including dual SIM slots for WWAN redundancy, four RJ45 Ethernet ports with dual 2.5GbE and dual PoE+ support, and multiple M.2 slots for additional expansion. It also includes features such as iAMT (16.1), TPM (2.0), and PCI-E slots for further customization and expansion capabilities.
Overall, the AMI240 fanless system from IBASE Technology Inc. stands as a testament to the company’s commitment to delivering cutting-edge computing solutions with unparalleled performance, reliability, and connectivity options.
