GW Instek portfolio designed to excel in education space


GW Instek has been serving education market since initial phase of its inception. Today Company carries a wide product portfolio of test & measuring instruments like Oscilloscopes, Spectrum Analyzers, Function Generators, Digital Multimeter, LCR Meter, DC Power Supply, Electronic Loads, AC Power Source etc. Majority of these products are well consumed in education market.

GW Instek offers various advantages to its customers:
A) A broad product line-up fulfilling the diverse requirements of education customers.
B) Solid reliability with superior quality is well proven.
C) Affordable price and the lowest cost per ownership in long run
D) GW Instek products carry industry’s one of the best price vs. performance ratio

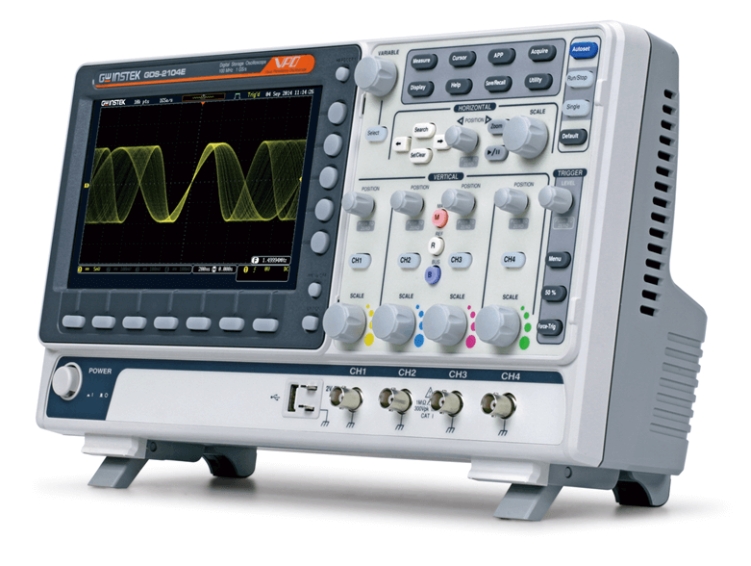

Digital Storage Oscilloscope
Digital Storage OscillioscopeThe GDS-2000E digital oscilloscope features bandwidth selections of 200MHz, 100MH, and 70MHz. Two-channel model provides 1GSa/s real-time sampling rate for each channel; four-channel model provides 1GSa/s maximum real-time sampling rate. The 8-inch 800*480 TFT LCD display and the minimum 1mV/div vertical range allow the GDS-2000E series to measure complex feeble signals and clearly display measurement results.

With respect to the memory depth, the GDS-2000E series digital oscilloscope provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1K, 10K, 100K, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The GDS-2000E series is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly.

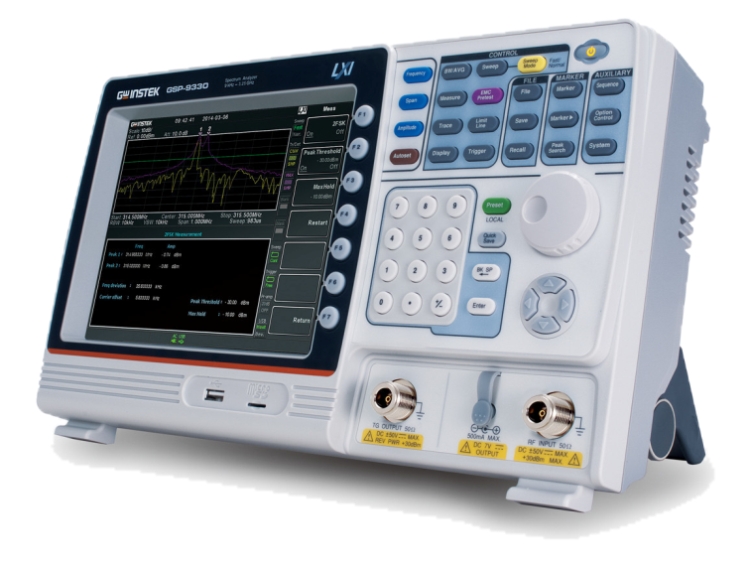

Spectrum Analyzer
Spectrum AnalyzerThe brand new GSP-9330 from GW Instek, a high test speed spectrum analyzer with 3.25 GHz, provides the fastest 204 μs sweep speed. Users, via high speed sweep time, can easily handle and analyze modulation signals. The keys to handling modulated signals are fast sweep time and signal demodulation functions. In addition to the analog AM/FM demodulation and analysis function, GSP-9330 also provides digital signal ASK/FSK, and 2FSK demodulation and analysis capabilities. GSP-9330 has incorporated the EMC pretest solution to facilitate EMC tests. The simple and easy EMC pretest procedures from GSP-9330 can tremendously shorten users’ product launch timeline.

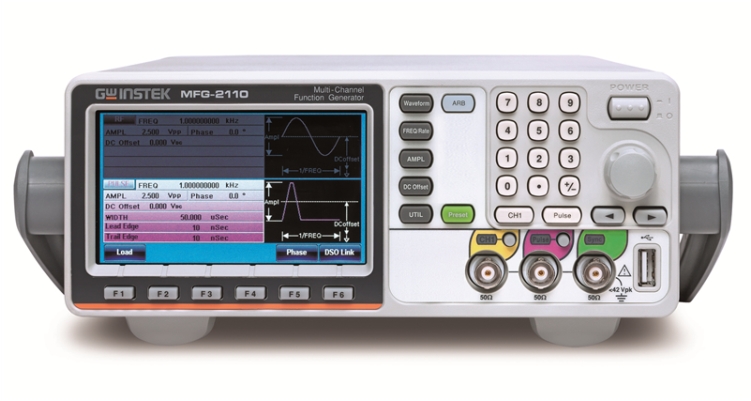

Multi-Channel Function Generator
Multi-Channel Function GeneratorGW Instek recently launched MFG-2000 series, Multi-Channel Function Generator which has up to 5 simultaneous output channels (MFG-2260MFA/MFG-2260MRA), including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; poweramplifier.

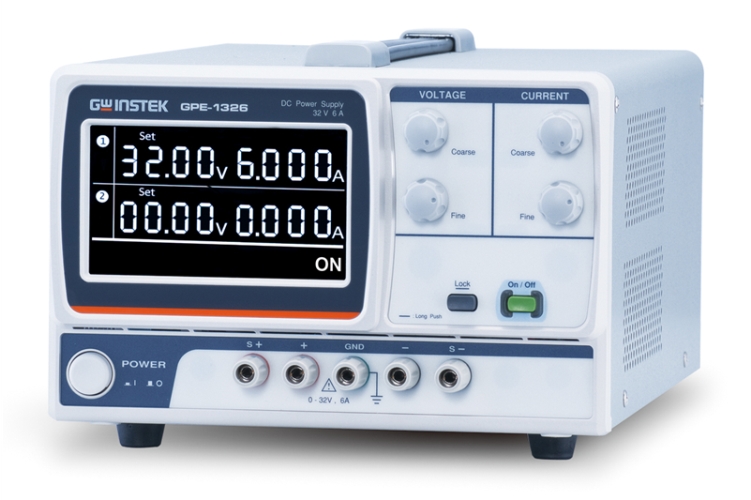

DC Power Supply
DC Power SupplyGW Instek recently introduced the GPE-X323 series high resolution power supply to the global market. As a front-runner in the power supply manufacturing industry, GW Instek adheres to the policy of highest production quality so as to ensure the qualitative edge over the competitors. The GPE-X323 series features output power from 192 to 217 watts, three independent isolated output channels (GPE-X323), high resolution, low noise, high reliability, key lock function, and compact size.

Contact, Sumit Sharma, Marketing Manager – India, Mob No: +91-9999167300
