Buy Toshiba’s TC35678 Bluetooth LE IC from Mouser

Delivers Industry-Leading Low Current Consumption

222

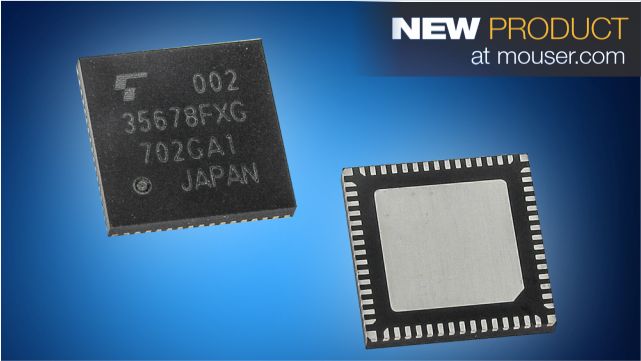

Mouser Electronics, the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now stocking the TC35678 IC from Toshiba Semiconductors. Achieving industry-leading low current consumption with long operating times, the single-chip device is compliant with Bluetooth core specification 4.2. With the ability to store application code in embedded flash memory, the TC35678 can be run with or without an additional host microcontroller for small Internet of Things (IoT) and Bluetooth Smart applications.

The Toshiba TC35678 IC, available from Mouser Electronics, is based on an ARM Cortex-M0 microcontroller and incorporates 256 Kbytes of built-in flash ROM. Developers can use the flash ROM to store programs and data in standalone operations, eliminating the need for an external EEPROM and contributing to an ultra-low bill of materials to reduce overall design cost and size. The TC35678 device also delivers Bluetooth Host Control Interface (HCI) functions and Bluetooth low energy GATT functions that allow for quick BQE system certification.

At a 3V supply voltage, the TC35678 delivers one of the lowest power consumptions in the industry. Utilizing its highly efficient DC-DC converter for power management, the IC’s low-power circuit design secures a nearly 46 percent current reduction and peak current consumption of 3.6 mA in transmitting mode. To support various battery types, the TC35678 has an operating voltage between 1.8V and 3.6V, and the IC’s programmable operation modes allow for optimal power consumption.

Other features of the TC35678 include 100 Kbtyes of SRAM, a general-purpose analog-to-digital converter (ADC), PWM functions, a low dropout regulator, a wake-up signal for host devices and user program functionality. An on-chip silicon oscillator helps drive both the main and sleep clocks, so no external clocks are required. Communications is accomplished through the IC’s UARTs, I2C, SPI and general-purpose inputs and outputs (GPIOs).

To learn more about Toshiba’s TC35678 IC, visit http://www.mouser.com/new/Toshiba-Semiconductors/toshiba-tc35678-ble/.
