3 Terminal 0603 Size Capacitor for Advanced Driver Assistance Systems by Murata

794

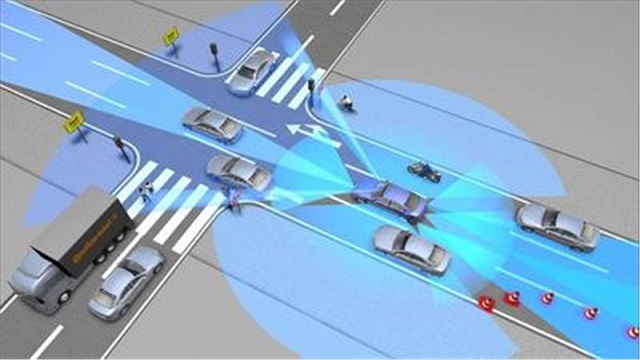

Murata developed the NFM18HC series, a 3 terminal ceramic multilayer capacitor in 0603 size (1.6 x 0.8mm) for high reliability applications in automobiles. The focus is on implementation in automobile preventive safety systems and advanced driver assistance systems (ADAS).

A 3 terminal multilayer ceramic capacitor has smaller ESL than a conventional 2 terminal multilayer ceramic capacitor, so it can reduce the impedance in a high frequency band with few components. Making use of this characteristic has resulted in wide adoption for smartphones and other devices where compactness and high density are needed for mounted high speed processors. Use of 3 terminal multilayer ceramic capacitors in the auto market has recently surged due to demand for high performance processors and smaller electronics, which has accompanied the increase in high-functioning multitasking onboard equipment such as ADAS, preventive safety systems, and in-vehicle infotainment (IVI).

The NFM18HC Series provides a 3 terminal multilayer ceramic capacitor in the company’s smallest 1.6 x 0.8mm package (previous product was 2.0 x 1.2mm) for use in high reliability automobile applications, making a contribution to further size reduction and tighter density for automotive electronics.

Shape:- (NFM18HC105C1C3D 、 NFM18HC105C1C3J)3 Terminal Capacitor

L size 1.6 ±0.1mm
W size 0.8 ±0.1mm
T size 0.6 ±0.1mm
External terminal width e 0.35±0.1mm
External terminal size i 0.4±0.1mm
External terminal size j 0.2±0.1mm
Distance between external terminals g 0.15mm min.
Size code in inch(mm) 0603 (1608)

Specifications:-

Capacitance 1.0µF ±20
Rated voltage 16Vdc
Operating temperature range -55 to 125℃
Rated Current 2A
DC Resistance(max.) 20mΩ

References

Packaging Specifications Minimum quantity
D φ180mm Paper taping 4000
J φ330mm Paper taping 10000

For more information, visit Murata’s website at www.murata.com
