TDx21D485x , TDx21DCANx & TDx22DCAN Transceivers Series by MORNSUN

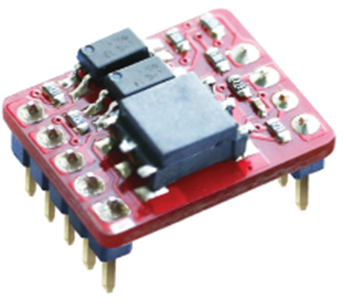

RS485 Transceivers TDx21D485x Series in DIP10 package

MORNSUN recently announced cost-effective, compact size RS485 transceivers TDx21D485x series, to assist fast signal response in industries of power grid, industrial control and instrumentation, etc. TDx21D485x series are designed with excellent performance, manufacturing process and reliability.

MORNSUN Transreceiver

Features:

  1. Integrated power supply, bus isolation and ESD protection in one module
  2. Two- port isolation (3000VDC)
  3. Baud rate up to 500Kbps
  4. Connect up to 256 nodes on one bus
  5. Operating temperature range:-40℃ to +85℃
  6. Compact size, DIP10 package

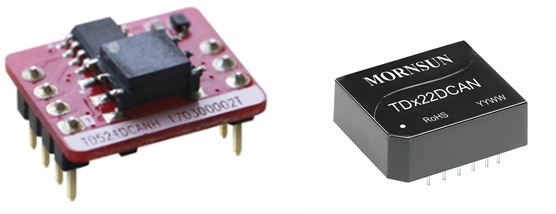

Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size

MORNSUN recently announced cost-effective, compact size CAN transceiver TDx21DCANx series and TDx22DCAN series, to assist fast signal response in industries of power grid, industrial control and instrumentation, etc. TDx21DCANx series and TDx22DCAN series are designed with excellent performance, manufacturing process and reliability.

MORNSUN

Features:

  • Integrated power supply, bus isolation and ESD protection in one module
  • Isolation:

TDx21DCANx: Two- port isolation (3000VDC)

    TDx22DCAN: Two- port isolation (2500VDC) /Channel isolation (1500VDC)

  • Baud rate up to 1Mbps
  • Connect up to 110 nodes on one bus
  • Operating temperature range:-40℃ to +105℃
  • Compact size, DIP8 package

For more information visit:www.mornsun-power.com
