RECOM 18w and 30w AC/DC for Medical Applications

1082

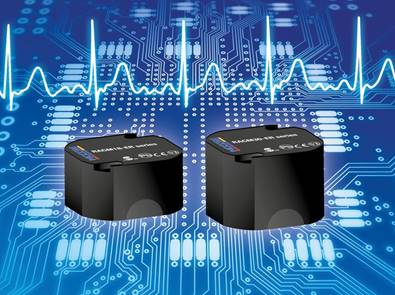

RECOM RACM18 and RACM30 AC/DC converters were developed for medical PCB designs, which are in need of full certifications and energy efficient AC/DC modules. For that reason, they are certified to the latest IEC/EN60601 medical standards, as well as the EN60335 household and the IEC/EN60950 ITE standards. The robust electronic circuitry and IP68 waterproof encapsulation withstand harsh operating conditions and make them highly reliable.

The RACM18-ER and RACM30-ER series comprise reliable and highly efficient power conversion modules for versatile uses in medical, household and industrial applications. They comply with requirements of the high-risk nature of medical applications, where very high standards of safety and reliability must be fulfilled. The modules take up less than 2”x2” on the PCB and their compact round shape design also allows them to be fitted into flush mount wall installations. With a certified operation up to 5000m altitude and temperature ranges from -20°C up to +80°C, these modules are built to power compact applications in medical healthcare, household, sanitary, smart building, and automation appliances. For easy integration, the series are covered by the latest medical, household and ITE certifications and they pass Class B with at least 6dB below the limits without the need for any external components. They are CE-marked and come with a three-year warranty.

Samples are now available at all authorized distributors.
For more information please visit www.recom-power.com
