Now Available from Mouser: EPCOS B82806D Pulse Transformers

112

Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now stocking the B82806D pulse transformers from EPCOS, a TDK Group company. These new EPCOS transformers are designed specifically for the IEEE 802.3bt Power over Ethernet++ (PoE++) standard for supplying devices with higher power demands, such as video and point-of-sale systems, lighting controllers, fire alarm systems, and building access systems.

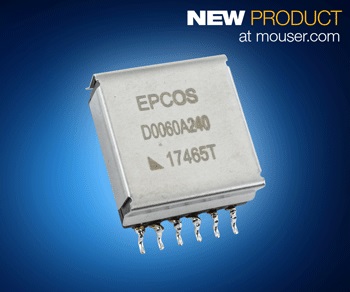

The EPCOS B82806D devices, available from Mouser Electronics, are a series of 60 W PoE transformers with different turns ratios for output voltages of 3.3 V, 5 V, 12 V, and 24 V. Featuring an EPCOS EFD 20 ferrite core, the B82806D PoE transformers offer DC resistance values as low as 3.5 milliohms and a typical switching frequency of 250 kHz. The B82806D transformers are compliant with UL 1446 class 130 (B) standards, are RoHS compatible, and can withstand a high-voltage test for one second between the primary and secondary sides at 1500 V AC, 50 Hz.

Capable of supplying powerful loads, the transformers’ high efficiency also makes them appropriate for active clamp forward converter topologies.

For more information, visit mouser.com.
