Nanotube antennas are viable competitor for copper in 5G wireless and other applications

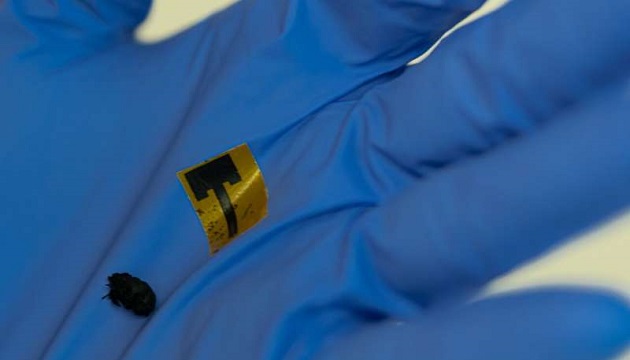

According to the scientists at Rice University’s Brown School of Engineering, the antennas made of carbon nanotube films are just as efficient as copper for wireless applications. The antennas are more flexible and tougher, and can essentially be painted onto devices.

The Rice lab of chemical and biomolecular engineer Matteo Pasquali tested antennas made of shear-aligned nanotube films. The scientists discovered that not only were the conductive films were able to match the performance of commonly used copper films, they could also be made thinner to better handle higher frequencies.

At the target frequencies of 5, 10 and 14 gigahertz, the antennas easily held their own with their metal counterparts, he said. “We were going up to frequencies that aren’t even used in Wi-Fi and Bluetooth networks today, but will be used in the upcoming 5G generation of antennas,” he said.

Nanotubes were dissolved by the Rice lab to make the films. Most of them single-walled and up to 8 microns long, in an acid-based solution. When spread onto a surface, the shear force produced prompts the nanotubes to self-align.

Bengio said that although gas-phase deposition is widely employed as a batch process for trace deposition of metals, the fluid-phase processing method lends itself to more scalable, continuous antenna manufacturing.

The test films were about the size of a glass slide, and between 1 and 7 microns thick. The nanotubes are held together by strongly attractive van der Waals forces, which gives the material mechanical properties far better than those of copper.

The researchers said the new antennas could be suitable for 5G networks but also for aircraft, especially unmanned aerial vehicles, for which weight is a consideration; as wireless telemetry portals for downhole oil and gas exploration; and for future internet of things applications.

“There are limits because of the physics of how an electromagnetic wave propagates through space,” Bengio said. “We’re not changing anything in that regard. What we are changing is the fact that the material from which all these antennas will be made is substantially lighter, stronger and more resistant to a wider variety of adverse environmental conditions than copper.”

“This is a great example of how collaboration with national labs greatly expands the reach of university groups,” Pasquali said. “We could never have done this work without the intellectual involvement and experimental capabilities of the NIST team.”
