Multichannel FMCW Radar transmitter leverages automotive & industrial applications

Analog Devices Inc., a pioneer in designing and manufacturing semiconductor products and solutions, expands its transmitter range with the all-new ADF5902 FMCW Radar Transmitter.

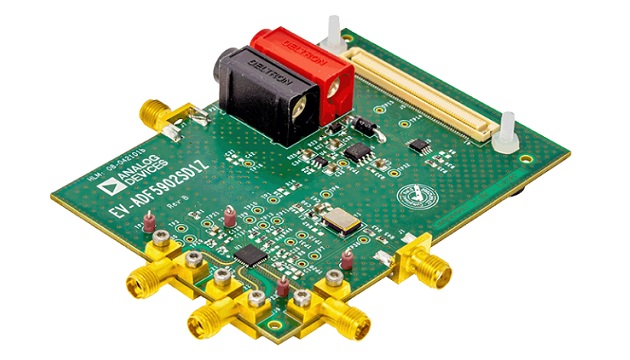

The ADF5902 is a 24 GHz transmitter (Tx) monolithic microwave integrated circuit (MMIC) with an on-chip, 24 GHz voltage controlled oscillator (VCO). The VCO features a fractional-N frequency synthesizer with waveform generation capability with programmable grid array (PGA) and dual transmitter channels for radar systems.

Key Features:

  • 24 GHz to 24.25 GHz VCO (industrial, scientific, and medical (ISM) radio band)
  • 2-channel 24 GHz power amplifier with 8 dBm output
  • Single-ended outputs 2-channel muxed outputs with mute function


  • Automotive radars
  • Industrial radars
  • Microwave radar sensors
