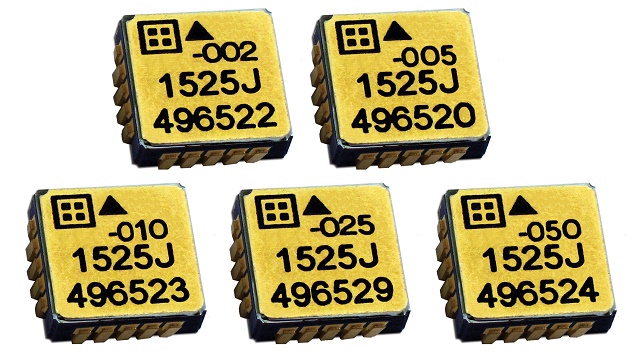

    MEMS Capacitive Accelerometers with Internal Temperature Sensor and Improved Low-Noise Performance by Silicon Designs

    Silicon Designs, Inc a 100% veteran owned, U.S. based leading designer and manufacturer of highly rugged MEMS capacitive accelerometer chips and modules, on November 9,  announced the immediate availability of its Model 1525 Series, a family of commercial and inertial-grade MEMS capacitive accelerometers, offering industry-best-in-class low-noise performance.

    Design of the Model 1525 Series incorporates Silicon Designs’ own high-performance MEMS variable capacitive sense element, along with a ±4.0V differential analog output stage, internal temperature sensor and integral sense amplifier — all housed within a miniature, nitrogen damped, hermetically sealed, surface mounted J-lead LCC-20 ceramic package (U.S. Export Classification ECCN 7A994). The 1525 Series features low-power (+5 VDC, 5 mA) operation, excellent in-run bias stability, and zero cross-coupling. Five unique full-scale ranges, of ±2 g, ±5 g, ±10 g, ±25 g, and ±50 g, are currently in production and available for immediate customer shipment. Each MEMS accelerometer offers reliable performance over a standard operating temperature range of -40° C to +85° C. Units are also relatively insensitive to wide temperature changes and gradients. Each device is marked with a serial number on its top and bottom surfaces for traceability. A calibration test sheet is supplied with each unit, showing measured bias, scale factor, linearity, operating current, and frequency response.

    Carefully regulated manufacturing processes ensure that each sensor is made to be virtually identical, allowing users to swap out parts in the same range with few-to-no testing modifications, further saving time and resources. This provides test engineers with a quick plug-and-play solution for almost any application, with total trust in sensor accuracy when used within published specifications. As the OEM of its own MEMS capacitive accelerometer chips and modules, Silicon Designs further ensures the manufacture of consistently high-quality products, with full in-house customization capabilities to customer exacting standards.  This flexibility ensures that Silicon Designs can expeditiously design, develop and manufacture high-quality standard and custom MEMS capacitive accelerometers, yet still keep prices highly competitive.

    The Silicon Designs Model 1525 Series tactical grade MEMS inertial accelerometer family is ideal for zero-to-medium frequency instrumentation applications that require high-repeatability, low noise, and maximum stability, including tactical guidance systems, navigation and control systems (GN&C), AHRS, unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs), remotely operated vehicles (ROVs), robotic controllers, flight control systems, and marine- and land-based navigational systems. They may also be used to support critical industrial test requirements, such as those common to agricultural, oil and gas drilling, photographic and meteorological drones, as well as seismic and inertial measurements.

    For more information  www.silicondesigns.com
