0° To 360° Angle Sensor ICs by Allegro MicroSystems, LLC

Designed with Advanced Diagnostics to support Safety-Critical Automotive & Industrial Applications

427

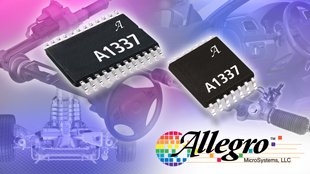

Allegro MicroSystems, LLC introduces two new 0° to 360°angle sensor ICs that provide contactless high-resolution angular position information based on magnetic Circular Vertical Hall (CVH) technology. Allegro’s A1337 and A1338 devices have a system-on-chip (SoC) architecture that includes: a CVH front end, digital signal processing, and digital SPI, SENT, and PWM outputs. They also include on-chip EEPROM technology, capable of supporting up to 100 read/write cycles, for flexible end-of-line programming of calibration parameters. Both devices are ideal for automotive applications requiring 0° to 360° angle measurements, such as electronic power steering (EPS), seatbelt motor position systems, rotary PRNDLs, and throttle systems. The A1338 is also well suited for industrial motor position sensing applications that require high accuracy and minimal latency as well.

The A1337 and A1338 devices were designed with safety-critical application requirements in

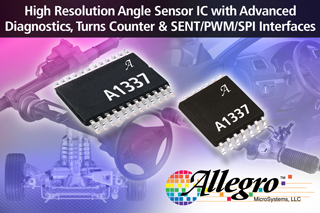

A1337

mind. They include user-controlled, on-chip logic built-in self-test (L-BIST) and full signal path diagnostics to enable customers to determine if the IC is operating properly. Both devices support a Low RPM mode for slower rate applications and a High RPM mode for high-speed applications. High RPM mode is for applications that require higher refresh rates to minimize error due to latency. Low RPM mode is for applications that require higher resolution operating at lower angular velocities.

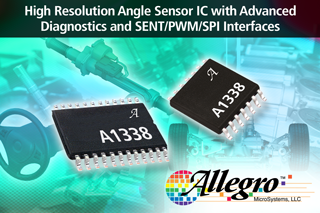

A1338

The A1337 device also includes integrated Turns Counter and Low-Power Mode functions. The Low-Power Mode enables the device to be connected directly to the vehicle battery and minimizes power consumption when the vehicle is in the key-off state. The Turns Counter function allows the device to keep track of either 45° or 180° turns of the motor when the part is in Low-Power Mode, allowing it to keep track of the motor position even when the vehicle is in the key-off state.

The A1337 and A1338 devices are available in two package options, a single-die, 14-pin TSSOP and a dual-die, 24-pin TSSOP. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.

The 1,000 piece price for the various configurations are as listed below:

Catalog part number

Die Configuration (Communications Protocol)

1,000 piece price

A1337LLETR-T
A1337LLETR-P-T
Single die (SPI & SENT)
Single die (SPI & PWM)
$2.338
A1337LLETR-DD-T

A1337LLETR-P-DD-T

Dual die (SPI & SENT)
Dual die (SPI & PWM)
$3.74



A1338LLETR-T

A1338LLETR-P-T

Single die (SPI & SENT)
Single die (SPI & PWM)
$1.594
A1338LLETR-DD-T

A1338LLETR-P-DD-T

Dual die (SPI & SENT)
Dual die (SPI & PWM)
$2.55



For more information visit : www.allegromicro.com
