Pixus roll out all new configurations of OpenVPX development systems

Pixus Technologies, a provider of embedded computing and enclosure solutions, now offers OpenVPX Development Chassis Platforms for wide range of prototype testing requirements.

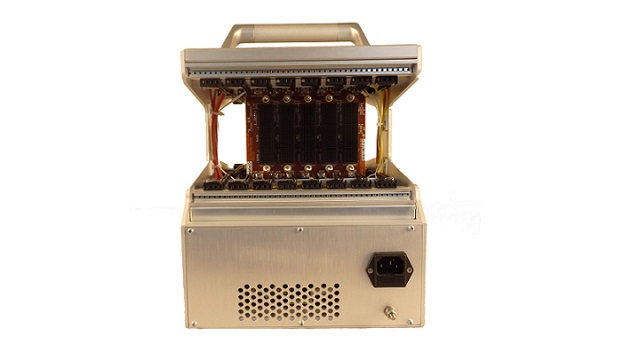

The Pixus open frame chassis now come in three main backplane types: power and ground only, centralized topology, and distributed topology. The power and ground backplanes come in 8-slot, 6-slot, 1-slot and specialty configurations.  For routed backplanes, there are multiple topologies available where one centralized switch slot is connected with a fat pipe or double fat pipe to the other slots. The distributed type routes multiple slot segments to each other.  All three of the backplane styles have versions available in 3U and 6U heights.

The open frame enclosures come in a 42HP wide size that holds up to 8 OpenVPX or 63HP versions supporting up to 10 slots, assuming a 1″ pitch.  The 63HP size has removable sidewalls, allowing thermal testing and easy access in the same chassis. The Pixus designs allow a mix-and-match of 5HP wide and 4HP wide slots (or specialty board widths) as well as standard card guides or ones that support conduction-cooled boards. If more slots or advanced cooling is required, the company also offers 19″ rackmount/desktop configurations.

Pixus offers various power supply choices including modular versions that provide up to 6 OpenVPX voltages and up to 1200W.  There are also pluggable VITA 62 power supply options.

For more information, visit: www.pixustechnologies.com
